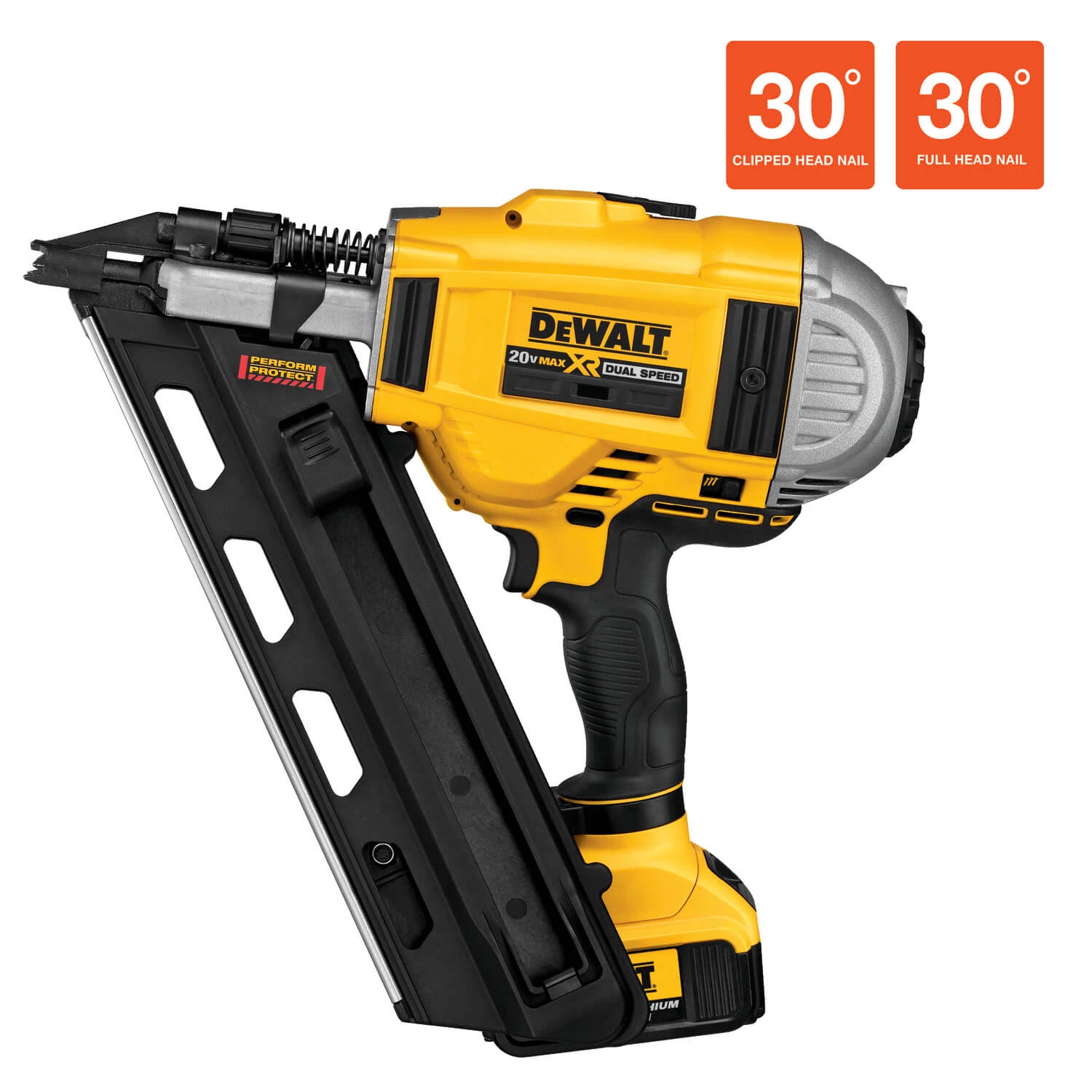

DeWalt DCN692M1 20V MAX XR 2-Speed Framing Nailer (4.0Ah) Kit POWER TOOLS

FEATURES

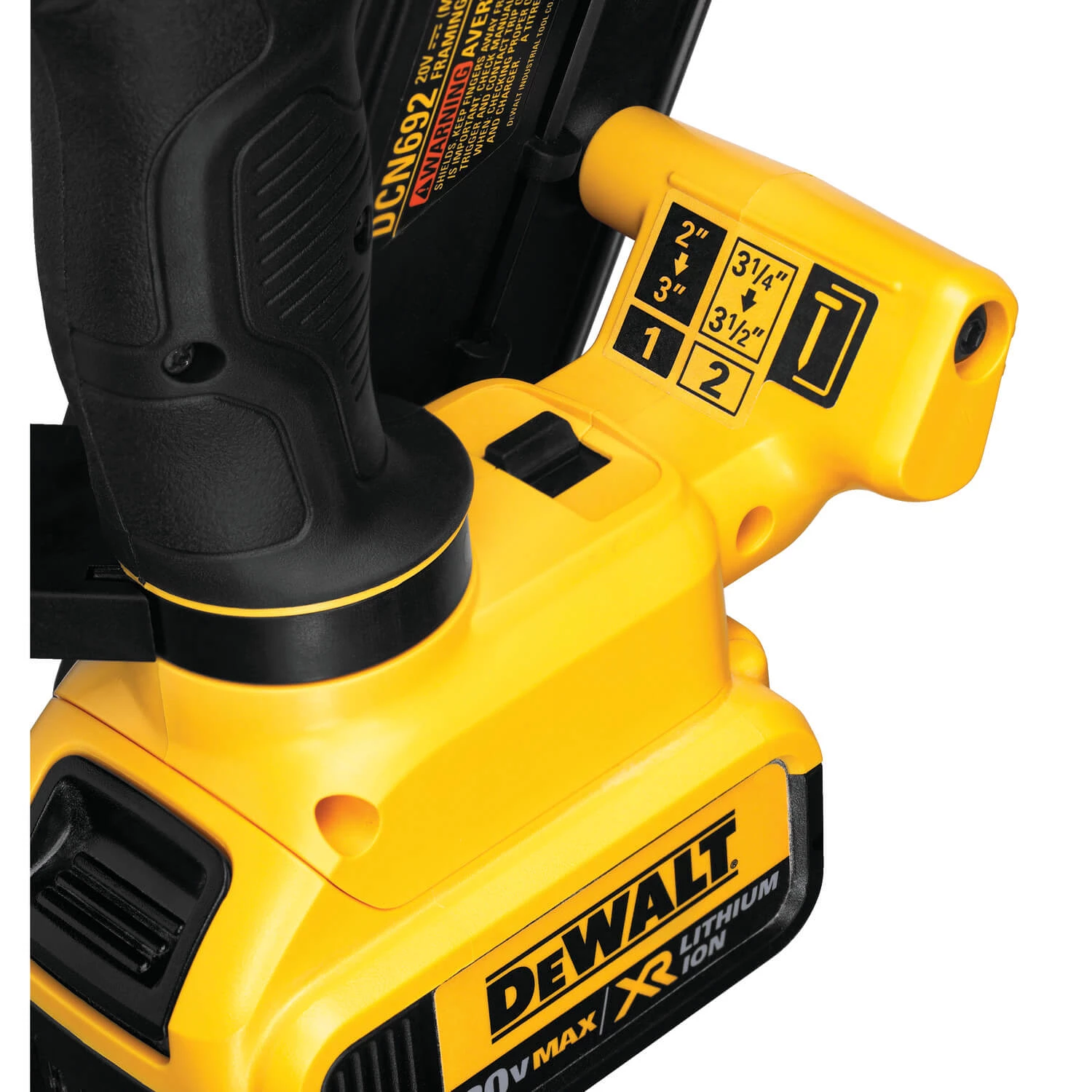

• Dual-speed motor optimzed to drive a wide range of fasteners for a variety of applications

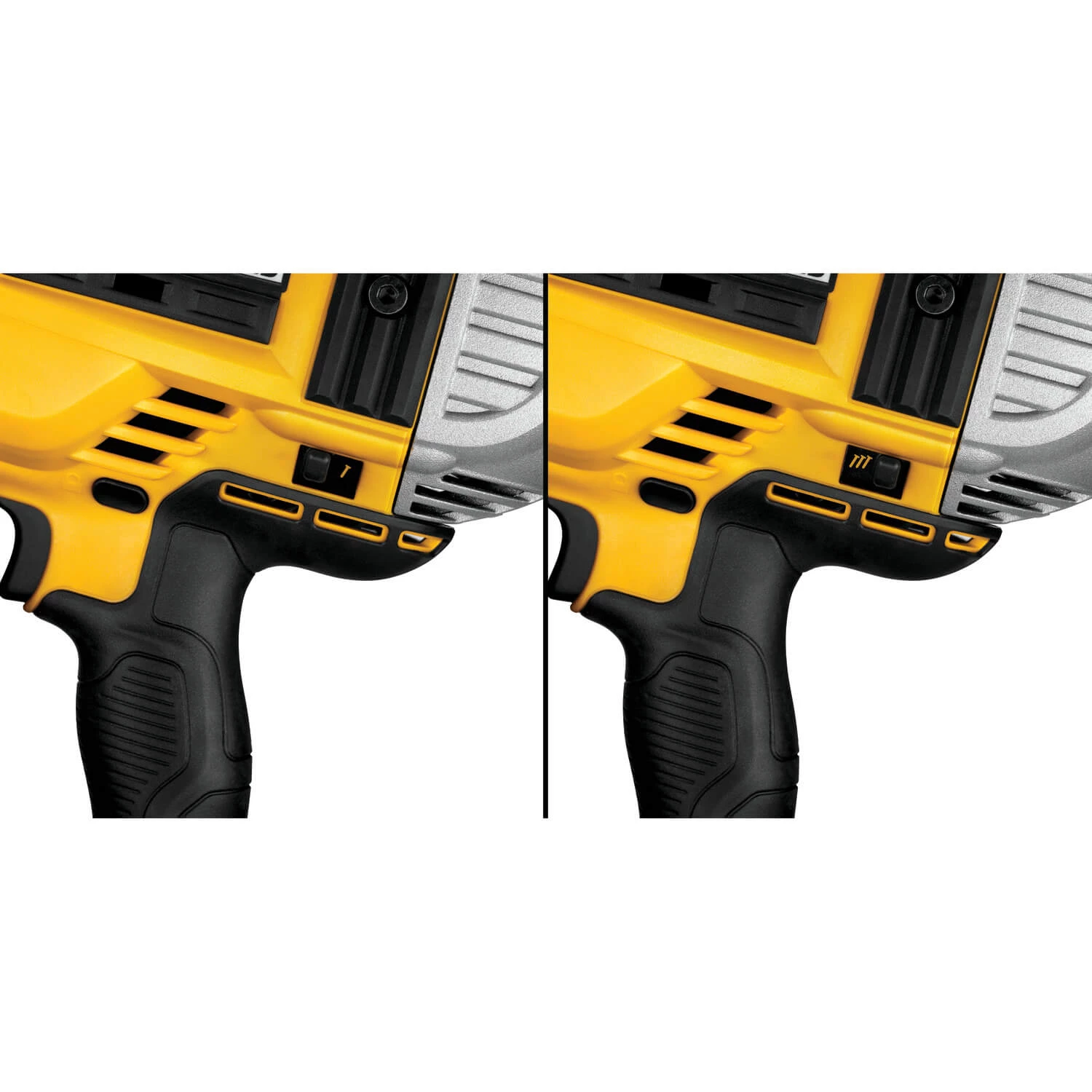

• Tool-free selector switch for sequential or bump fire modes
• Tool-free depth adjustment for precise nail placement
• Stall release lever to reset driver blade in the event of a jam
• Adjustable rafter hook
• Easy access to the nosepiece for removal of jammed nails
• Dry fire lock out prevents tool from firing when nails are low
• 33° magazine holds up to 55 paper collated nails
• Capable of driving 3-1/2 in. fasteners into dense wood

SPECIFICATIONS

• BELT / RAFTER HOOK TRUE
• COLLATION TYPE PAPER
• DEPTH ADJUSTMENT TOOL FREE
• DRY FIRE LOCKOUT TRUE
• FASTENER DIAMETER RANGE .113 TO .131 IN
• FASTENER LENGTH 2 TO 3-1/2 IN
• FASTENER TYPE / GAUGE: 30 DEGREE PAPER TAPE
• FIRING / ACUTATION MODE TOOL FREE SELECTABLE TRIGGERGRIP OVERMOLD
• JAM CLEARANCE YES
• MAGAZINE ANGLE 30 DEGREE
• MAGAZINE CAPACITY 55
• MAGAZINE LOADING REAR LOAD
• NO MAR PAD TRUE
• POWER SOURCE CORDLESS
• POWER TOOL TYPE CORDLESS
• SYSTEM 20V MAX*
• TOOL HEIGHT 13.5 IN
• TOOL LENGTH 13.25 IN
• TOOL WEIGHT 8 LBS
• TOOL WIDTH 4 IN
• TRIGGER LOCK-OFF TRUE

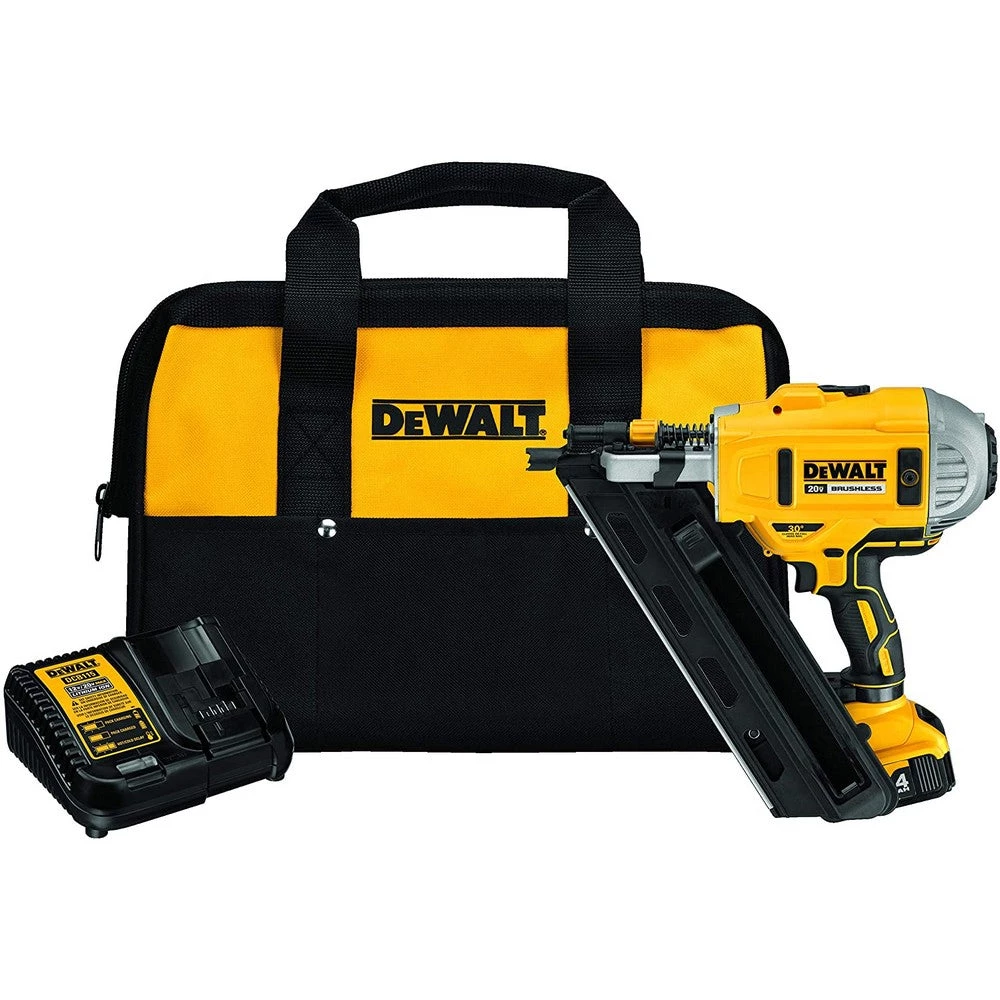

INCLUDES

• DCN692 Framing Nailer
• No-Mar Tip
• Manual
• DCB204 20V MAX* Battery
• DCB115 Charger
• Kit Bag
