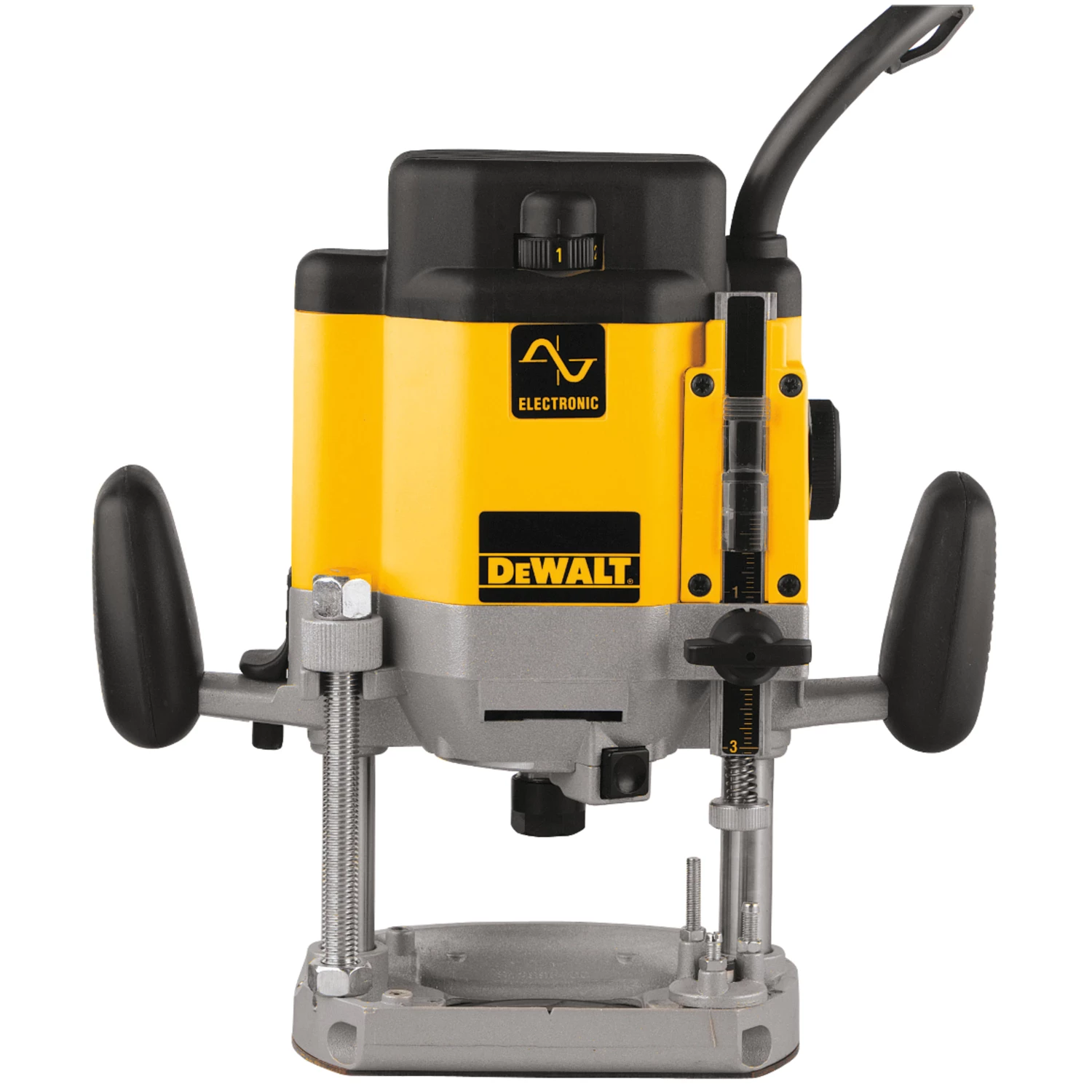

DeWalt DW625 – 3 HP Electronic VS Plunge Router

FEATURES

• 15.0 amp motor uses state-of-the-art circuitry for soft starts and smooth operation
• Full-wave electronic variable speed motor runs at 8,000-22,000 rpm with constant speed under load to ensure a quality finish in all materials
• Rack and pinion depth adjuster and magnified scale and micro-fine bit depth adjuster provides fast and accurate depth settings
• Phosphorous bronze bushings provide a smooth and accurate plunge
• Spindle lock button allows for single-wrench bit changes
• Dust extraction adapter for cleaner work sites
• 1/4″ – 1/2″ collet capacity for greater versatility
• Guide bushing adapter plate accepts standard guide bushings for template work
• One-piece motor shaft and spindle ensures perpendicularity and accuracy

SPECIFICATIONS

• AMPS 15.0 AMPS



• BASE DIMENSION 5-5/8 X 6-11/16 IN



• COLLET DIAMETER 1/2″, 1/4 IN



• DEPTH STOP 3 STAGE TURRET STOP



• NO LOAD SPEED 8,000-22,000 RPM



• PEAK HORSEPOWER 3 HP



• PLUNGE STROKE 2-7/16 IN



• POWER TOOL TYPE CORDED



• ROUTER BASE PLUNGE BASE



• ROUTER TYPE LARGE ROUTER



• SPINDLE LOCK YES



• TOOL WEIGHT 11.2 LBS

INCLUDES

• 1/4″ collet
• 1/2″ collet
• Dust Extraction Adapter
• Template guide bushing adapter
• Wrench
