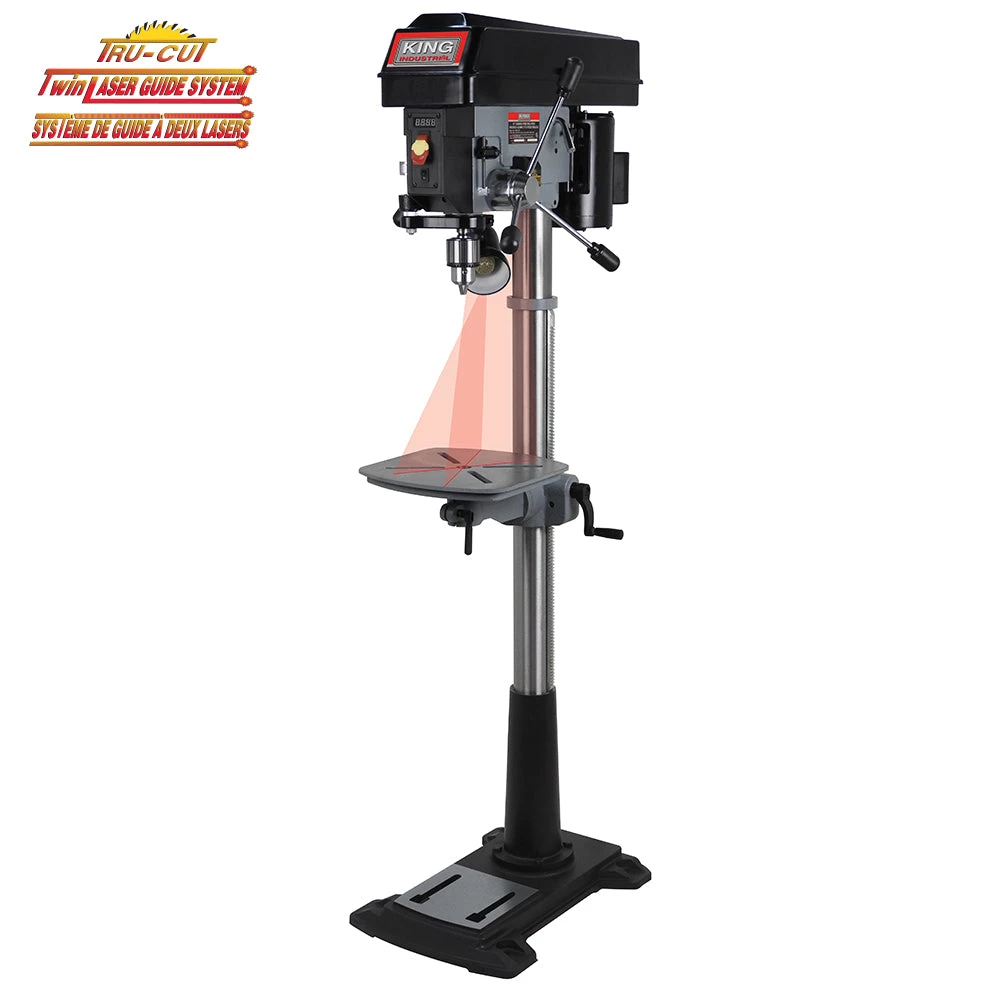

King Canada KC-15HS-VS 15” VARIABLE SPEED DRILL PRESS

• Powerful 3/4 HP, 8.6 Amp. motor

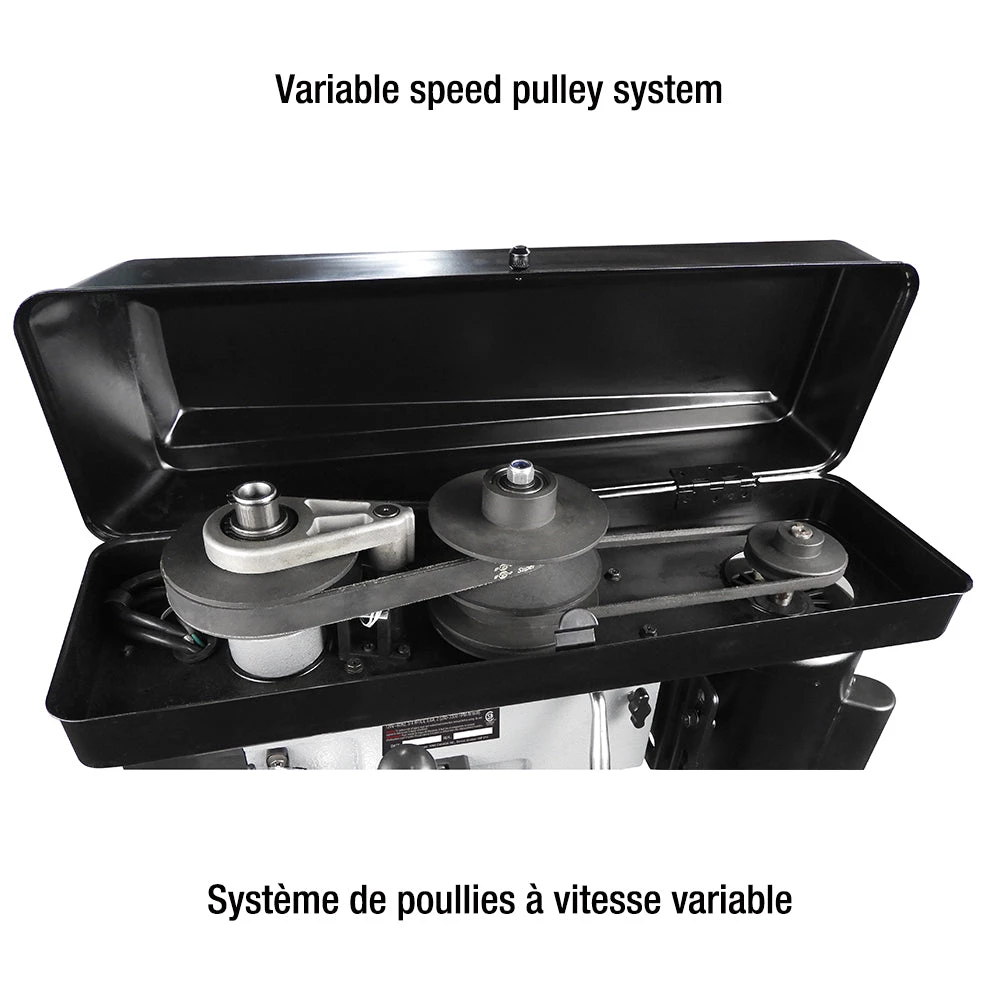

• Mechanical variable speed system with 2 speed ranges, 280-1100 RPM for metal and 900-3300 RPM for wood
• 4″ stroke capacity allows this drill press to drill workpieces up to 4″ thick
• Digital readout for precise spindle speed
• Dual intersecting adjustable laser guides
• Accepts up to 5/8″ shanked drill bits
• Positive depth stop for quick and easy adjustment of the spindle travel
• Flexible worklight illuminates the work area for maximum visibility
• Comes with 5/8″ drill chuck, chuck key, onboard chuck key storage and adjustment hex. keys

MODELKC-15HS-VS
CAPACITY5/8″
CHUCK SIZE5/8″
SWING15″
MAX. DISTANCE CHUCK TO COLUMN7-1/2″
MAX. DISTANCE CHUCK TO TABLE25″
STROKE4″
TABLE SIZE12″ x 12″
SPINDLE TAPERMT #2
VARIABLE SPEEDS2 (280 – 1,100 / 900 – 3,300) RPM
TABLE T-SLOTS9/16″
MOTOR/VOLTAGE8.6 Amp. @ 120V, 60 Hz, 1 phase
ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT14-3/4″ x 25″ x 64″ / 155 lbs
PACKAGING DIMENSIONS (LXWXH) / WEIGHT55-1/2″ x 22-1/2″ x 11-1/4″ / 160 lbs
UPC7 72995 01707 2
