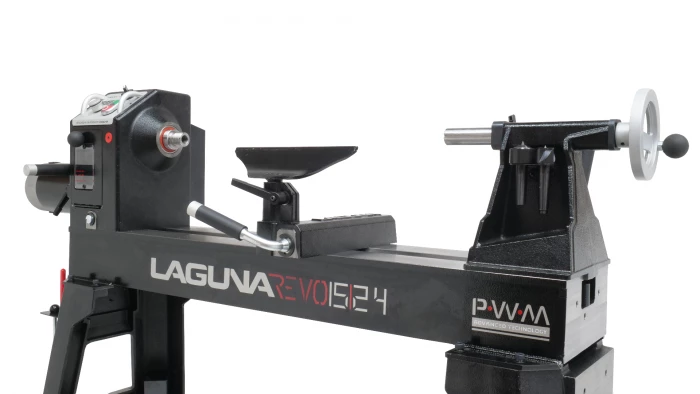

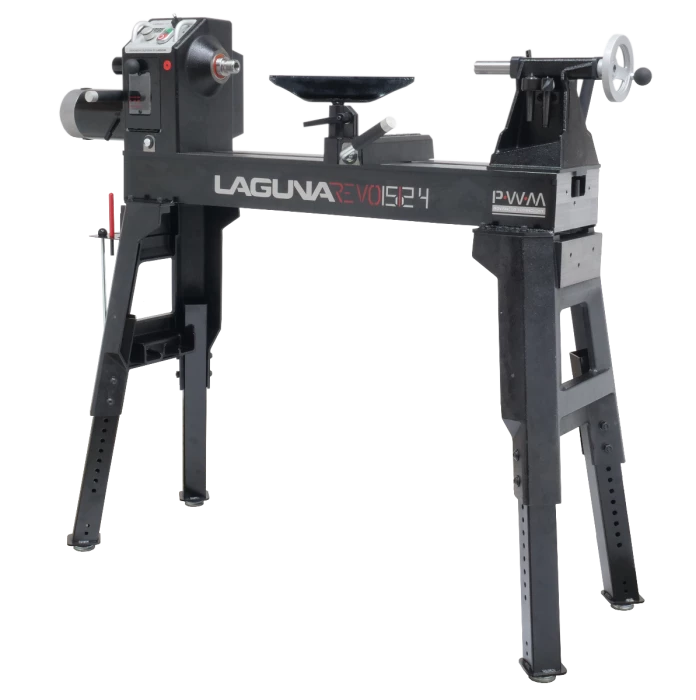

Laguna 415241, LAGUNA TOOLS, 1.5HP, 110V, REVO 15|24 LATHE

415241, Laguna Tools, 1.5HP, 110V, REVO 15|24 Lathe

The Revo 15|24 Laguna is filling the gap between the Revo 12|16 & the legendary Revo 18|36, providing space constrained users with more power and capacity.

Features:

• World-class fit and finish Laguna is known for the Sliding headstock
• Infinite electronic variable speed from 50 – 4200 RPM with a 3 step pulley
• Extraordinary torque even at low speeds, powered by Laguna Pulse Width Modulation
• Adjustable-height legs allow a more ergonomic working position tailored to individuals needs
• Steel bed provides strength, stability and a surface that the banjo will glide across smoothly
• A brand new feature is the patent-pending Precise Point that allows you to dial in the tailstock quill to meet with the headstock center



Specifications:

• Electrical: 1.5HP, 110 Volt, 8 Amp, 60 Hz.
• Motor: Permanent Magnet DC, 2150 RPM
• PWM: Pulse Width Module Speed Control
• Recommended Breaker: 15 Amp
• CSA C/US: 256540
• Spring Loaded Spindle Lock
• Swing over Bed:15-1/2”
• Swing over Banjo: 11-3/32”
• Outboard Swing with optional accessory: 25”
• Tool-Rest Post Size: 1”
• Tool-Rest Length: 12”
• Spindle Taper: MT#2
• RPM High:650-4200
• RPM Mid: 325-2100
• RPM Low: 50-650
• Tailstock Quill: 4 ½”, Self-Ejecting
• Floor to Spindle Center Low: 36.4”
• Floor to Spindle Center High: 51.4”
• Floor to Bed Min.: 28.6”
• Floor to Bed Max. : 43.6”
• Front Bearing: TPI Taiwan 6206LLU
• Rear Bearing: TPI Taiwan 6205LLU
• Spindle Index #: 24 w/ Lock
• Distance between Centers: 24”
• Headstock/Tailstock Through-Bore: 3/8”
• Headstock Travel: Full Length
• Tailstock Storage of Centers
• Spindle Size: 1 ¼” X 8TPI RH
• Floor Space: W 60” D 22” H 56”
• Box Dimensions: L 52” W 22” H22”
• Weight Net/Ship: 288/302 Lbs
