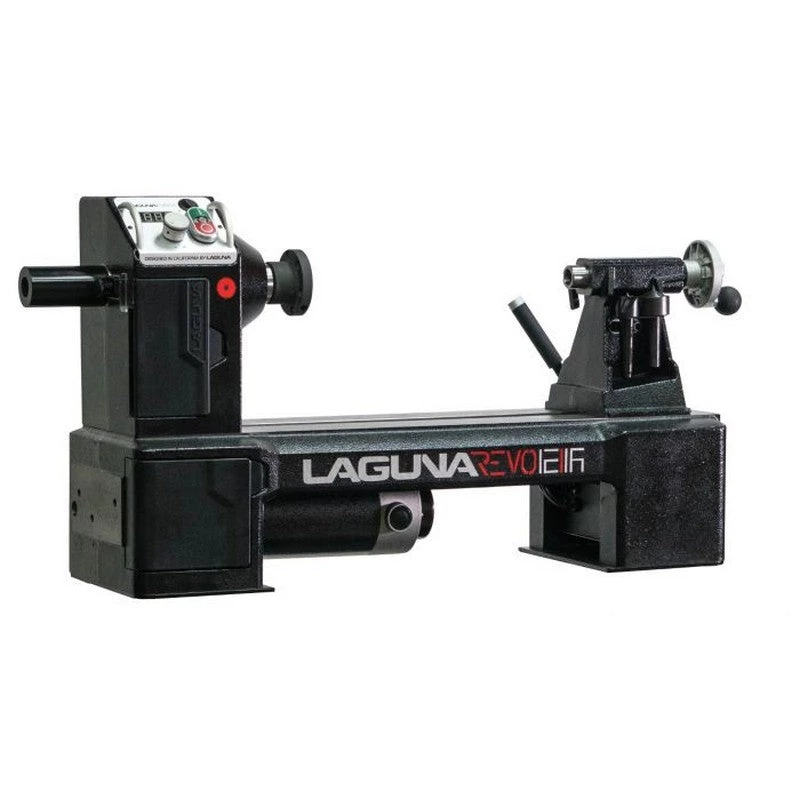

MLAREVO1216EVS, Laguna REVO 12|16 Lathe

REVOLUTIONARY NEW CONTROL PRODUCES SUPERIOR TORQUE

Pulse Width Modulation efficiently delivers more torque at low- to mid-range speeds, minimizing RPM loss. PWM delivers power to a DC motor through a succession of voltage pulses rather than adjusting voltage or current. PWM vastly improves efficiency at low- to mid-range speeds and substantially decreases the loss of torque under load

HOW DOES PULSE WIDTH MODULATION DIFFER FROM STANDARD CONTROLLERS?

Typically a controller limits voltage or current to adjust the speed. This limitation results in less torque being available especially at low to mid-range speeds. The voltage not being used is converted to heat that can damage electrical components after prolonged use

Stand sold seperately.

Features:

• 24 Position Index System with Lock & Transparent Window √
• Electronic Variable Speed & RPM Digital Read Out (DRO) √
• Pulse Width Modulation (PWM) Motor Control √
• Hardened 1045 Steel Tool Rest Leading Edge √
• Luxury Banjo with 45° Chamfered Edge √
• Live & Drive Center On-Board Storage √
• Forward & Reverse Spindle Rotation √
• Premium Banjo & Tailstock handles √
• 1” REVO Compatible Tool Rest Post √
• 3-1/2” Solid Polished Handwheel √
• ACME Lead Screw in Tailstock √
• Drive Center Knock-out Rod √
• Live Center & Drive Center √
• Magnetic Door Latches √

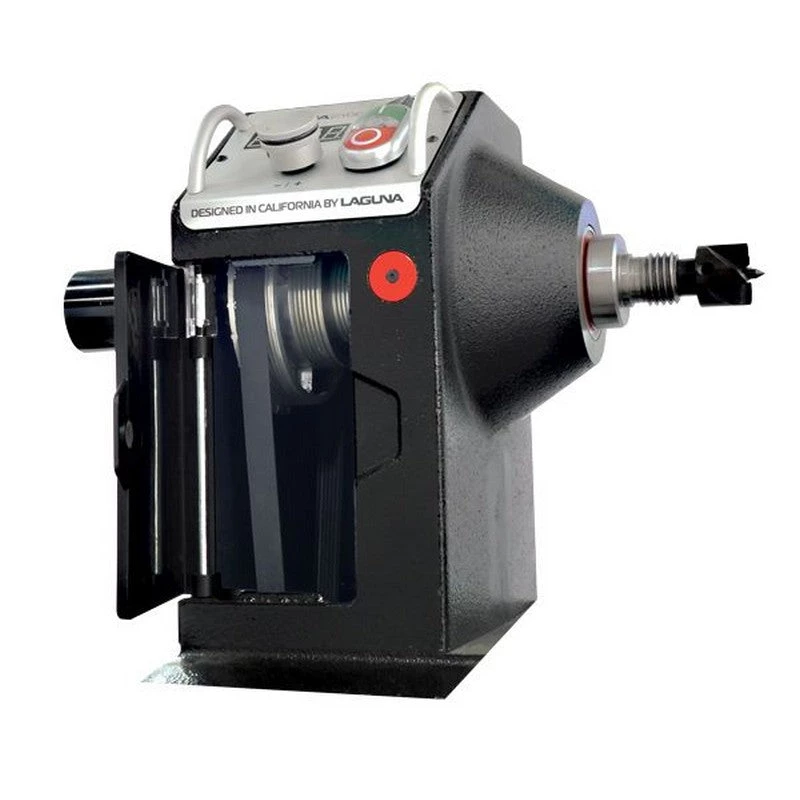

• Tool-less Belt Change √
• Faceplate Wrench √
• 3” Faceplate

Specifications:

• Motor: 1 HP DC Permanent Magnet Motor
• Controller: Pulse Width Modulation (PWM)
• Electrical Requirements: 110V-1PH-60HZ
• Recommended Breaker Size: 110V – 15 AMP
• Speed Range High 650 – 3500 RPM
• Speed Range Mid 325 – 1750 RPM
• Speed Range Low 50 – 525 RPM
• Distance Between Centers 15.5”
• Swing Over Bed 12-1/2”
• Swing Over Banjo 9-1/2”
• Max. Outboard Swing 16”
• Spindle Bore 3/8”
• Spindle Taper MT2
• Spindle Thread 1”x 8 TPI (both ends)
• Front Bearing 6006LLU
• Rear Bearing 6005LLU
• Indexing 24 positions w/ Lock
• Drive belt Poly-V Belt 6 Grooves
• Tail stock quill travel 2-1/2”
• Tail stock taper MT2
• Bed Length 29.4”
• Tool Rest Length 6”
• Tool Rest Post Dia. 1”
• Faceplate Dia. 3”
• Certification CSA C/US 256540
• Floor to bed height 6.7” no pads
• Floor to Spindle Center 13” no pads
• Overall Size L29.4” W8.9” H17.4”
• Shipping Dimensions L35.8” W14.6” H20.5”
• Net Weight 118 LBS
• Shipping Weight 125 LBS

Optional Accessories:

PREMIUM STAND

• Never has a Midi Lathe been supported
• this well. Adjustable from 39”– 45” at
• spindle center & featuring ergonomic
• multi tool shelving. Net Weight is 81 lbs.
• making the Revo 12|16 mounted on stand
• a combined 199 lbs.

INDUSTRIAL FLOOD LIGHT

• Dust-proof ribbed aluminum case
• swivels 320°, features bright
• glare-free floodlight & built-in
• transformer.

L BRACKET

• L-Shaped Bracket mounts on back of headstock In hi/low position.

DELUXE WHEEL SYSTEM

• The Wheel System is designed for maximum stability & ease of use.
• Simply step on pedal to engage.

EXPANSION SET

• 10” Cast Iron Extension
• Tool Rest Extension
• Spindle Adaptor LH | RH 1” X 8 TPI
