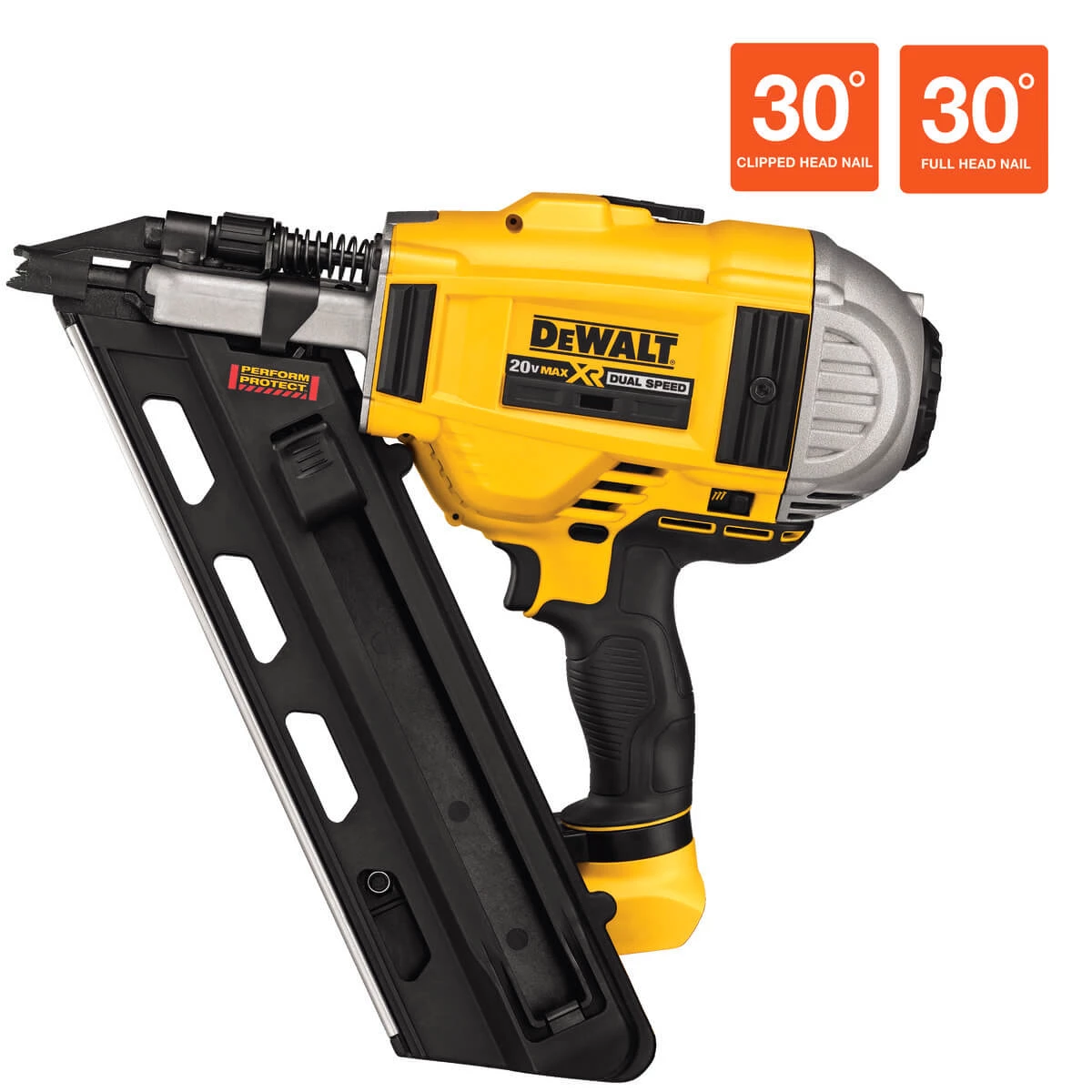

POWER TOOLS DEWALT DCN692B 20V Max XR Brushless Dual Speed Nailer

FEATURES

• Dual-speed motor optimized to drive a wide range of fasteners for a variety of applications
• Tool-free selector switch for sequential or bump fire modes
• Tool-free depth adjustment for precise nail placement
• Stall release lever to reset driver blade in the event of a jam
• Adjustable rafter hook
• Easy access to the nosepiece for removal of jammed nails
• Dry fire lock out prevents tool from firing when nails are low
• 33° magazine holds up to 55 paper collated nails
• Capable of driving 3-1/2 in. fasteners into dense lumber

SPECIFICATIONS

• BELT / RAFTER HOOK TRUE



• DRY FIRE LOCKOUT TRUE



• FASTENER DIAMETER RANGE .113 – .131 IN



• FASTENER LENGTH 2 TO 3-1/2 IN



• FIRING / ACUTATION MODE BUMP AND SEQUENTIAL



• MAGAZINE ANGLE 30 DEGREE



• MAGAZINE CAPACITY 55



• MAGAZINE LOADING REAR LOAD



• SYSTEM 20V MAX*



• TOOL HEIGHT 13.5 IN



• TOOL LENGTH 13.25 IN



• TOOL WEIGHT 8 LBS

INCLUDES

• DCN692 Framing Nailer
• No-Mar Tip
• Manual
